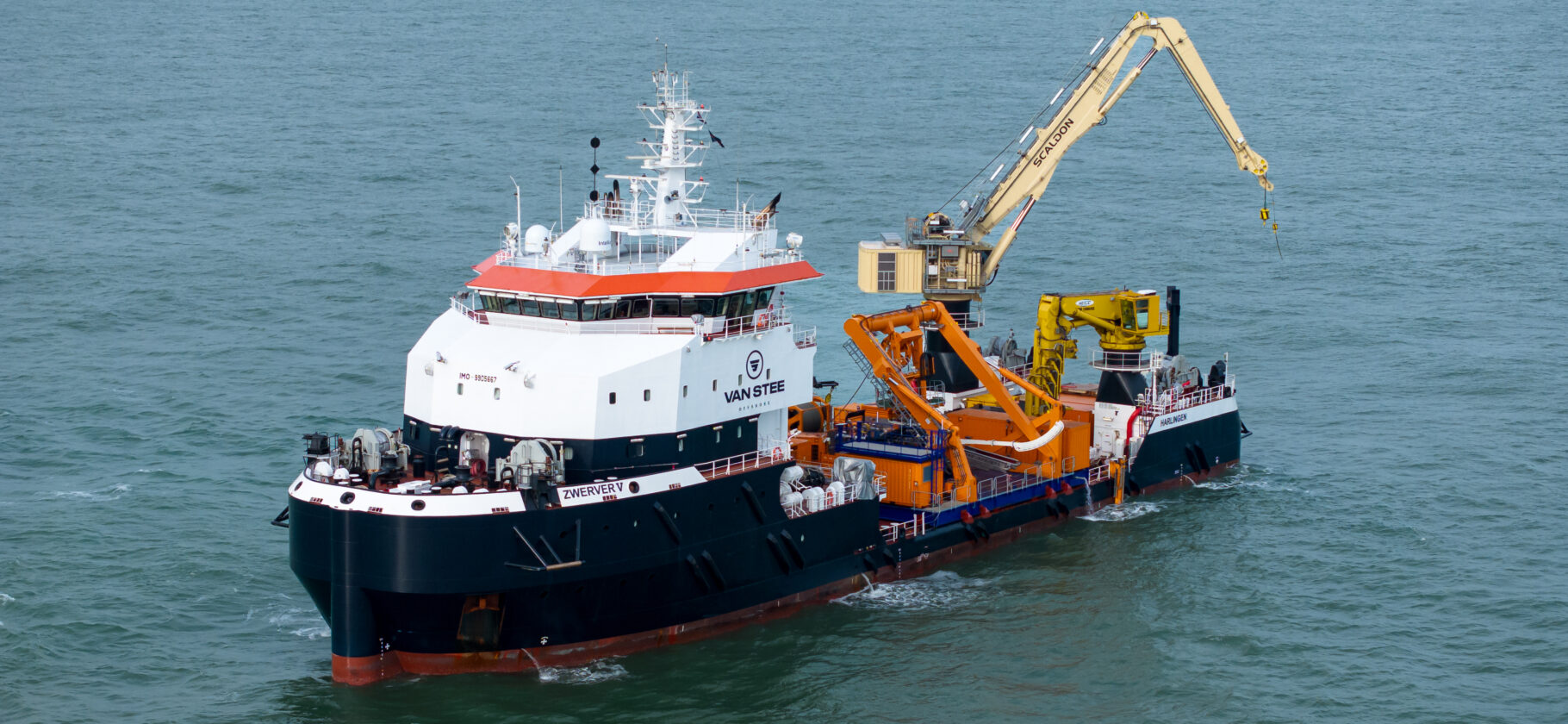

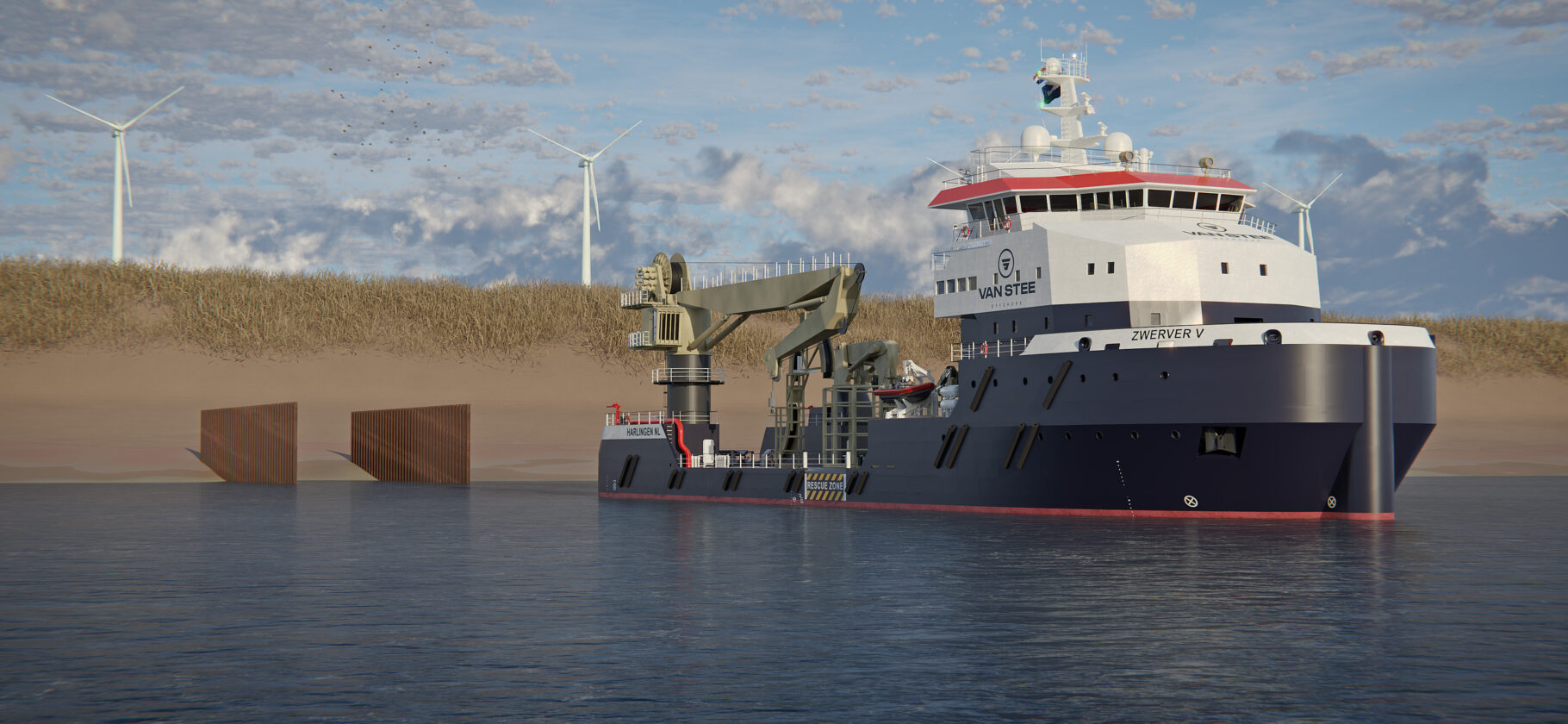

Zwerver V

DP2 | 8020 | Shallow draft | 60T BP | 4PM | FIFI 1

Shallow Draft Multi Purpose DP2 Support Vessel 80 x 20 m

Comfortable accommodation for 60 persons in 33 cabins. All cabins, galley, office and wheelhouse are heated and air conditioned.

Classification: Bureau Veritas | Mach | AUT-UMS | Unrestricted Navigation, Offshore support vessel, Fire Fighting 1 with water spray, Lifting-ALM, Diving Support, SP(60), Cleanship, Dynapos AM/AT-R, Strengthbottom, Inwatersurvey, COMF-NOISE 3, COMF-VIB 3, Green Passport EU

Specifications
Equipment
Systems
Performances

Dimensions

Lenght o.a.80 m

Breadth mld.20 m

Depth 1/2 L5,5 m

Draught min.3,0 m

Draught max.4,4 m

Free Deck Space800 m2

Max. DeckloadApprox. 1.800-2.200 T, 10 t/m2

Accommodation60 pax - 33 cabins

2x 1 Officer, 4x 1 pax, 27x 2-pax cabin

Meeting rooms, Mission control room, Server spaces, Client offices available

Tank Capacities

Fuel oil cargo646 m3

Fresh water611 m3

Lub oil8 m3

Hydraulic oil8 m3

Dirty oil / Sludge / Bilge water8 m3 / 7,6 m3 / 28 m3

Sewage / Grey water48 m3 / 48 m3

Ballast water1.950 m3

Deck equipment

Deck crane midshipsHeila 90.4S

4 T winch, 40 m wire

Lifting 5,4 T @ 12,72 m

Deck crane PS AftHeila 1000 / 6S

20 T winch, 80 m wire

Lifting 13,5 T @ 29,85 m

AHC, fixed hook option

Deck crane SB AftScaldon OKC 100-30

Lifting 100 T @ 10 m, SS3 (AHC)

Lifting 60 T @ 15 m, SS3 (AHC)

Lifting 30 T @ 30 m, SS3 (AHC)

AHC, 2x Tuggerwinch , Manriding, CT 5-10 T, 400 m wire capacity

Aux winch 5 T

4 PM System4x 40 T Pull, 90 T hold capacity, Wire capacity 1000 m x Ø 38 mm

4x 5 T Delta Flipper anchors (Optional)

Tuggerwinches2x 10 T pull, 15 T hold capacity

FIFI-1FFS 3.750 m3/hr - 2x 1.200 m3/hr remote controlled monitors on stern

1x 300 m3/hr foam - Water spray

Moonpool2x 800mm

BoatlandingRemovable type, positioned on SB or PS

FRC1x 12-pax FRC with inboard diesel engine

Nautical equipment: equipped for area A3

TBD

Propulsion system (Diesel-Electric)

Main E-Power4x Caterpillar C32 @ 940 ekW each

2x Caterpillar C18 @ 565 ekW each

Total E-Output / Total Propulsion power4.890 ekW / 2.800 ekW

3x 690V / 3x 440V - 60Hz

Propulsion2x Schottel Azimuth propeller 1.400 kW F.P.P. Ø 2200 mm

Bow thrusters1x Schottel Tunnel Thruster @ 765 kW F.P.P. Ø 1540 mm

1x Schottel Drop-Down Azimuth @ 800 kW F.P.P. Ø 1700 mm

Auxialiary sytems

Emergency Generator set1x Caterpillar C7.1 ACERT DITA @ 138 ekW

E-Power on deckDeck sockets/connections available 32A/63A/1

Hydraulic power 2x 160kW HPU / 4x 90kW HPU

Transfer pumps MGO 15-80 m3/hr / FW 15-80 m3/hr, including hoses

Air Compressor4.000 ltr/min, with connections on deck/ER/storage

Fresh water systems15 m3/24 hr

DP2 equipment

Dynamic positioning system (DP Class 2)Kongsberg K-POS DP-22 Dynamic positioning system

Laser Reference systemKongsberg Spottrack monitor

Optional:Taut wire system, USBL system

Speed (maximum)11,5 kn

Bollard pull60 T
